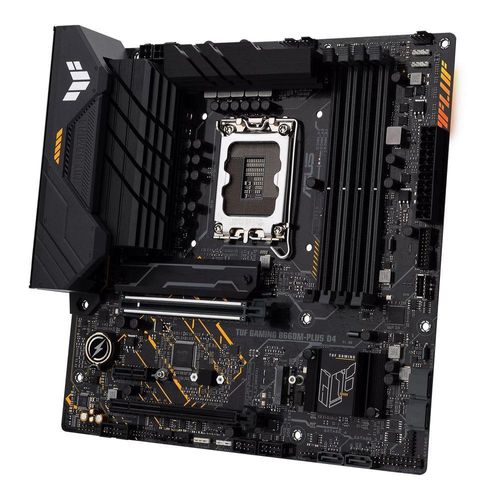

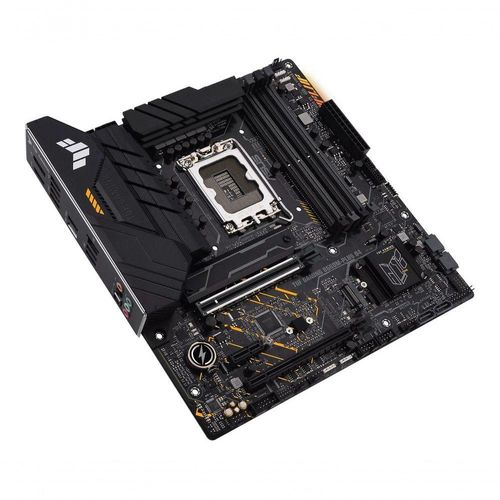

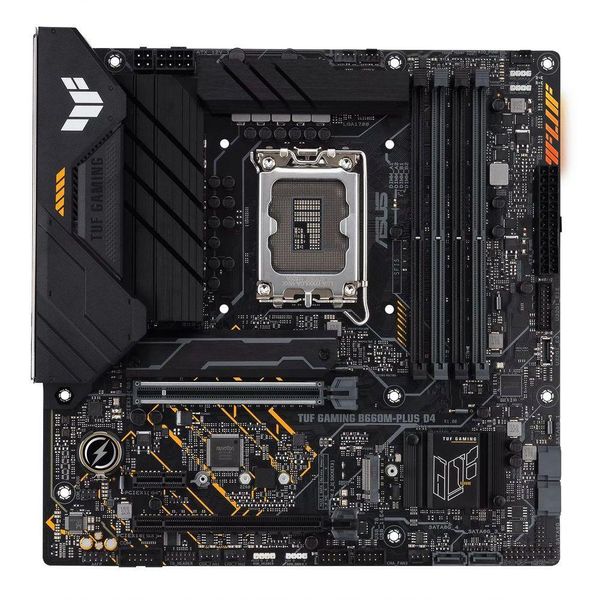

Placa Mãe Asus Tuf Gaming B660m-plus D4 Lga 1700 4xddr4 128gb, Hdmi,dp, 2x16, 1x1, 2x M.2, Usb 4x3.2, 2x 2.0, 1x Type C

(Cód.

956845_Lebiscuit
)

Cadastre-se no Clube Minha Le e tenha descontos exclusivos!

Quem viu viu também

CentímetroMetroKilogramaGrama

Dimensões

Placa Mãe Asus Tuf Gaming B660m-plus D4 Lga 1700 4xddr4 128gb, Hdmi,dp, 2x16, 1x1, 2x M.2, Usb 4x3.2, 2x 2.0, 1x Type C
Altura: 28,00 Centímetros
Largura: 28,00 Centímetros
Profundidade: 7,00 Centímetros
Peso: 141,00 Gramas

Descrição do Produto

Placa Mãe Asus Tuf Gaming B660m-plus D4 Lga 1700 4xddr4 128gb, Hdmi,dp, 2x16, 1x1, 2x M.2, Usb 4x3.2, 2x 2.0, 1x Type C

Memória
Canais de Memória:4DDR4 (Dual channel)
Tamanho Max de Memória:128GB
4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
*Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to for memory support list.
Gráficos
1 x DisplayPort**
1 x HDMI port***
*Graphics specifications may vary between CPU types. Please refer to for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
***Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors' resolution.

Slots de Expansão
Intel Core Processors (14th E 13th E 12th Gen)
1 x PCIe 5.0 x16 slot
Intel B660 Chipset*
1 x PCIe 3.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
* Supports Intel Optane Memory H Series on PCH-attached PCIe slot.

Armazenamento
Suporta 2 x slots M.2 e 4 x portas SATA 6Gb/s
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel Core Processors (14th E 13th E 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280
- Intel 12th Gen processors support PCIe 4.0 x4 mode.
Intel B660 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.

Rede
1 x Ethernet Realtek 2.5Gb
TUF LANGuard
1 x Realtek 2.5Gb Ethernet
TUF LANGuard

USB
USB Traseira:Total 8 portas
Total 8 ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
4 x USB 3.2 Gen 2 ports (4 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)

USB Dianteira:Total 7 portas
Total 7 ports
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Áudio
Codec de áudio Realtek
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
- Audio Features
- Audio Shielding
- Power pre-regulator reduces power input noise to ensure consistent performance
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers

Portas I/O no Painel Traseiro
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
4 x USB 3.2 Gen 2 ports (4 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port

Conectores I/O Internos
1 x header Thunderbolt (USB4) para suporte de placa adicional
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers

Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector

Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt header
]]>
